Device Feature Matrix
Infinity Player runs the same core on all seven. The table shows the only differences, each down to hardware a model has or lacks.
| Feature | DX340 / DX340Max | DX320MAX | DX320 | DX270 | DX260MK2 | DX180 |
|---|---|---|---|---|---|---|
| Sound engines | ||||||
| Infinity DSP v2 in Android modeTube Engine · Vinyl Engine · Chassis Engine · Crossfeed · Invert Phase | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Infinity DSP v2 in Infinity PureTube / Vinyl / Chassis · Crossfeed · Invert Phase · VU Meter | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| HRRAI & DSD RemasterInfinity Pure only — not available in Android mode on any model | ✓ | — | — | ✓ | ✓ | ✓ |
| DAC & FPGA — DX340-family silicon | ||||||
| Infinity FPGA & Custom HarmonicUltimate · Ultimate Enjuku · 9-band Harmonic profiles | ✓ | — | — | — | — | — |
| TrueNOS / NOS / OS · Interpolation RateCT7302 bridge | ✓ | — | — | — | — | — |
| Output | ||||||
| Digital / Analog Volume | ✓ DX340Max only | ✓ | — | — | — | — |
| Line Out switchPO / LO in the app | ✓ DX340 with AMP11 · AMP15 · AMP20 | ✓ | ✓ by amp card | — | ✓ | ✓ |
| SuperGainextra gain stage while a DC supply is plugged in | ✓ DX340Max built in DX340 with AMP15 – AMP20 | — | — | ✓ | — | — |
| Tube / solid-state outputAMP16: AB ↔ Tube · AMP19: Super A ↔ Tube | ✓ DX340 with AMP16 · AMP19 | — | ✓ by amp card | — | — | — |
| Display | ||||||
| Always On DisplayOLED panel | ✓ | — | — | — | — | — |
— means missing hardware (DX340-family FPGA, CT7302 bridge, OLED). Tube, Vinyl and Chassis run in both modes on every model; HRRAI and DSD Remaster need Pure and are not available on DX320MAX and DX320. Amp cards (DX340 and DX320) set Line Out and the tube switch, and SuperGain on the DX340.

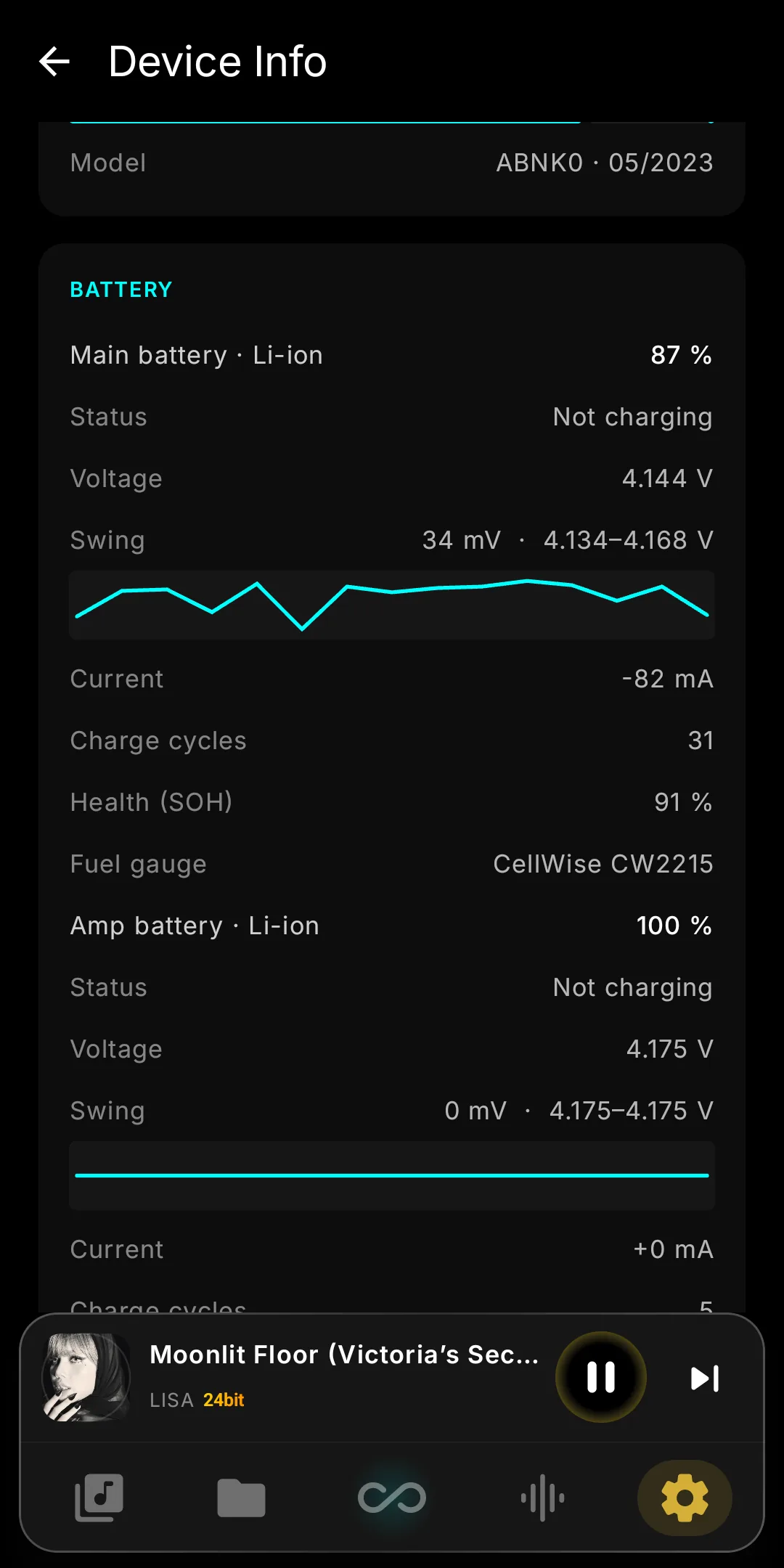

Device Info, now with graphs
The page from V11 that reads the hardware directly gains a picture of how the batteries behave under load.
Voltage graphs
Main and Amp battery voltage over the last five minutes, with the swing next to it â how hard the amp pulls each cell, at a glance.
Current on every model
Battery current now reads in mA, not 0 mA, on the DX340, DX270, DX180, DX320MAX and DX260MK2. The DX270 names its DAC "iBasso R2R Ultra".
Network tiles
Wi-Fi, Transfer, Rsync and UPnP sit atop Settings, coloured when on; the Wi-Fi tile shows off/searching/connected. Last.fm moved to Home, beside Radio.
